Milling Machines

Safety guard in polycarbonate for vertical spindle of milling machine on arm with double microswitch with Led light - type FB/L

Sku : 2FB300LCMLH
Protection for vertical spindle of milling machine placed on an articulating arm with 2 micro-switches - type FB. Screen in polycarbonate. With LED lamp.
Hand fitting
Screen
984,96 € - 1 070,28 €
€984.96

Description

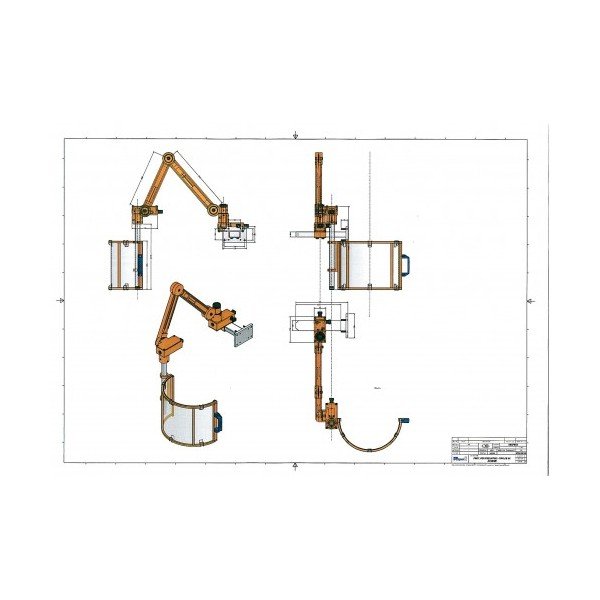

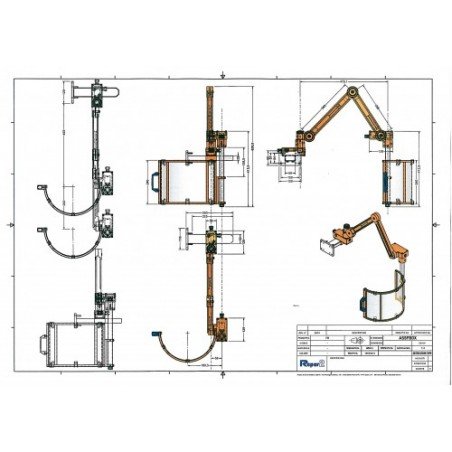

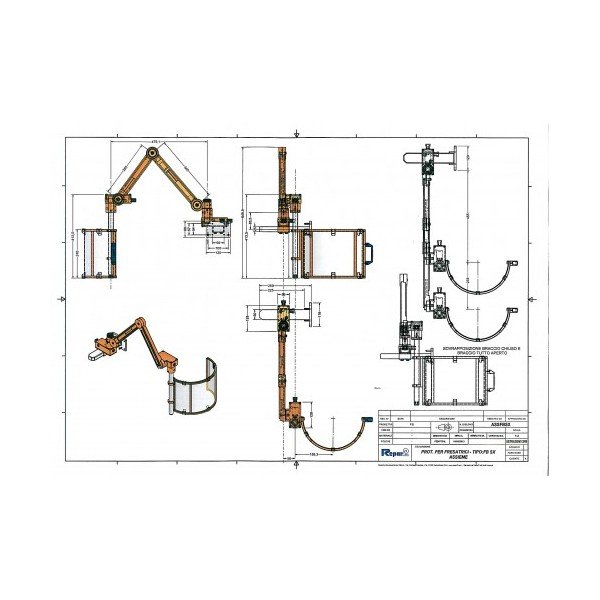

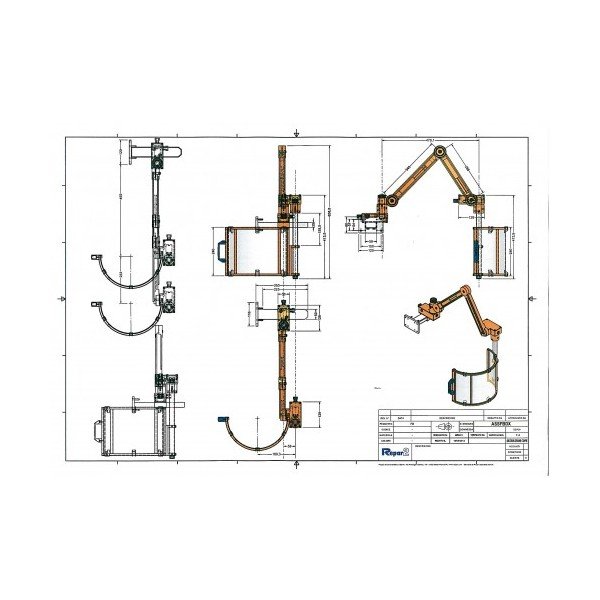

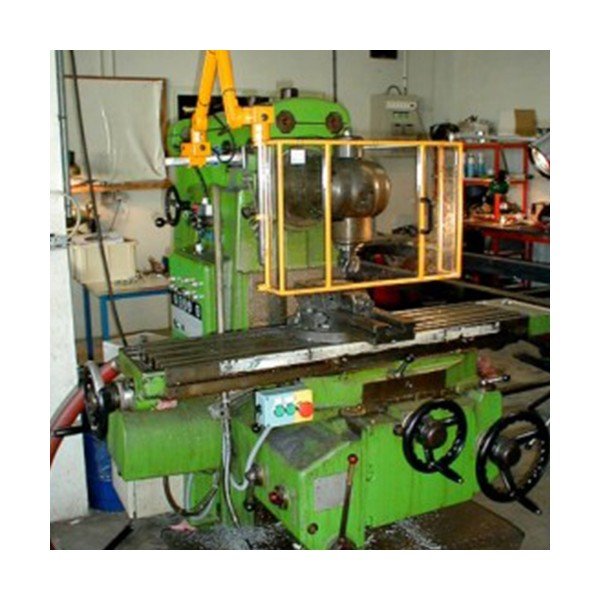

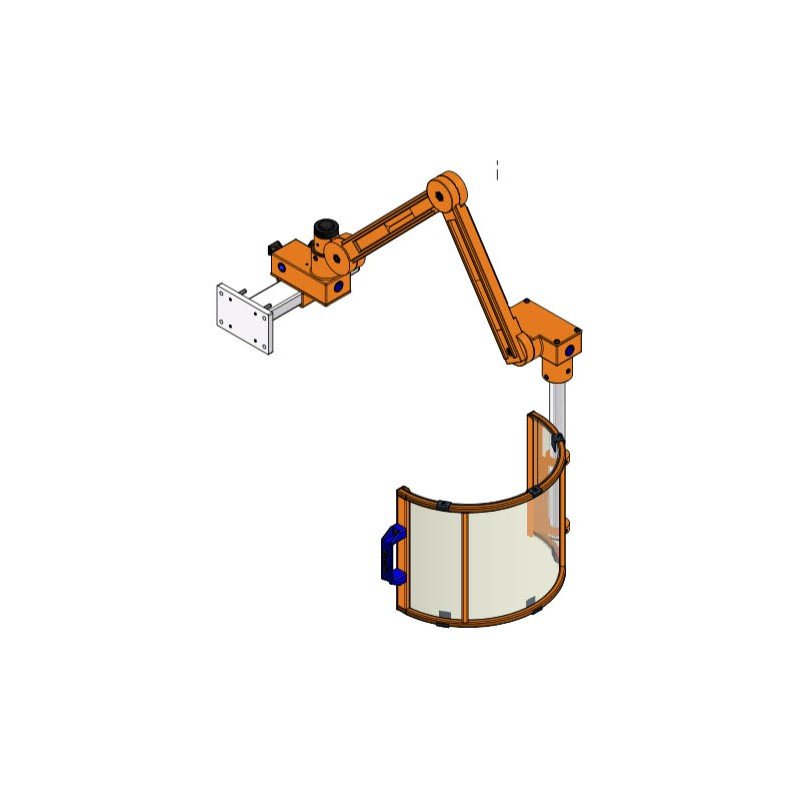

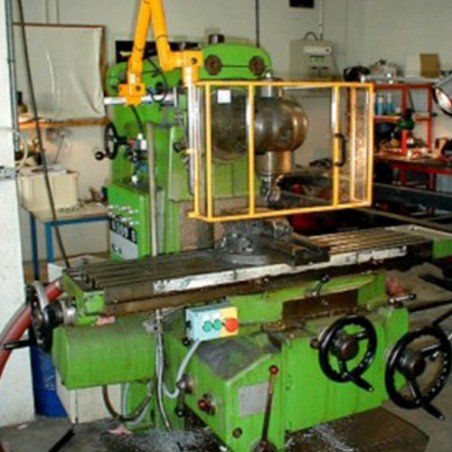

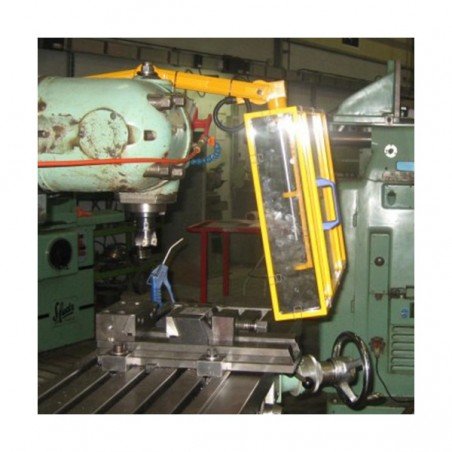

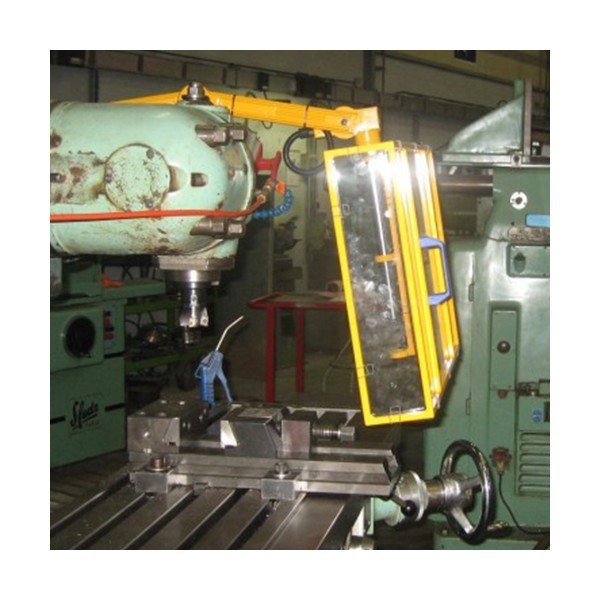

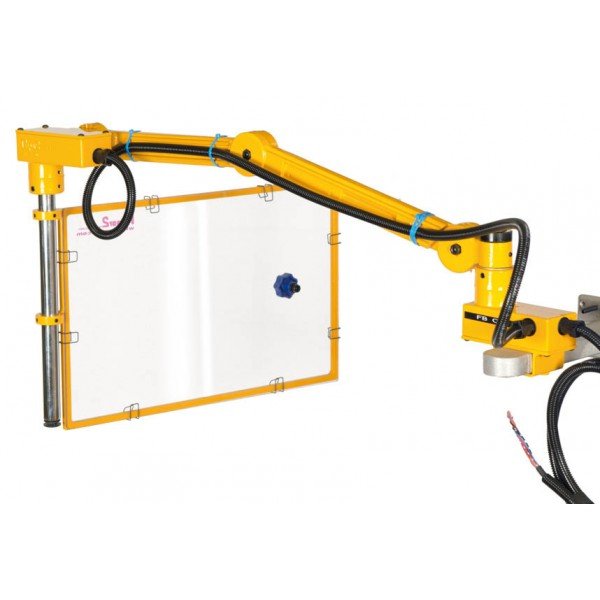

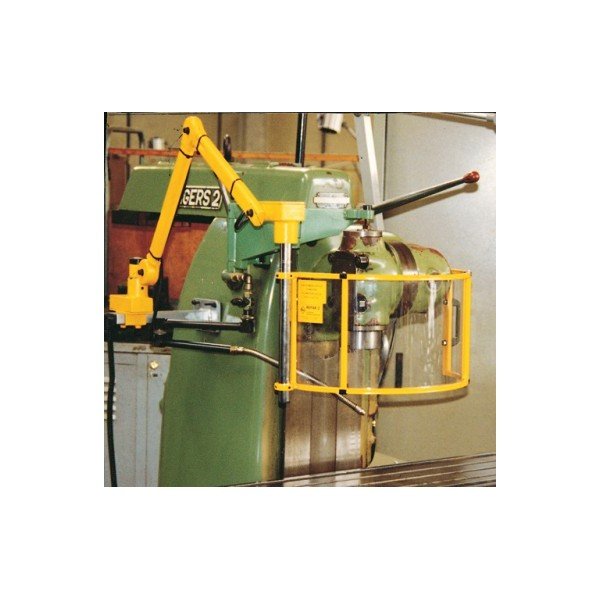

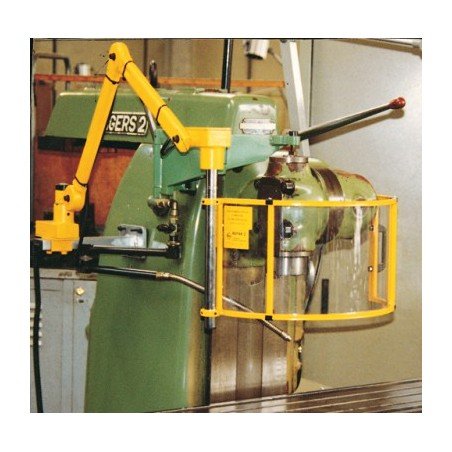

Spindle shield for a milling machine composed of a round screen with a steel frame, filled in with impact-resistant and scratch-free polycarbonate, mounted on an articulable arm with a double safety switch and halogen lamp (LLS20) on the round screen and LED lamp (LLS7) on the flat screen. The double safety switch allows the screen and arm to fold away. The articulable arm can be mounted on the left (LH) or right (RH) of the milling head and is adjustable in numerous positions to ensure perfect protection for the user. This screen protects the operator against the rotating spindle and the cutting tool as well as against chips, cooling water and oil. The screen is available in different diameters: 200; 300; 350; 400; 450; 500 and 600mm A flat screen (FC) with dimensions 600x400 mm can also be obtained. Benefits: - Greater freedom of work at the clamping table - High visibility towards the cutting tool - Protective cover very easy to adjust correctly via the articulable arm - Both the screen and the arm can be folded away Specifications: - Articulable arm for left or right mounting - Double safety switch - Domes available in diameter: 200; 300; 350; 400; 450; 500 and 600mm - Halogen lamp on the round screen; LED lamp on the flat screen - Device supplied with CE conformity certificate and an installation and usage sheet
